The iLIVING shutter exhaust fan is perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. The fan comes fully assembled out of the box; only installation required is the electrical hardwire. The shutter fan comes in 8 different sizes: 10 inch, 12 inch, 16 inch, 18 inch, 20 inch, 24 inch, 30 inch, and 36 inch; the 18 inch shutter fan has both a variable Speed ILG8SF24V and a single Speed model. The iLIVING 30 inch and 36 inch shutter fans are only available in single Speed. For variable Speed models, the iLIVING ILG8SFSC Speed controller is sold separately.

These SF shutter exhaust fans have a totally enclosed motor and comes complete with built in speed switches and a 9′ cord. no electrician is required, just mount the fan in the wall and plug it into an approved receptacle. the corrosion resistant aluminum shutter comes complete with a tie bar to reduce shutter flapping and keep the shutters closed when the fan is not running. on the intake side of the fan the balanced aluminum blade is protected by a strong painted grill.

Features:
built in speed switch with 9′ cord attached
comes totally assembled out of the box
totally enclosed maintenance free motor
corrosion resistant aluminum shutter with tie bar to reduce shutter flapping and opening on windy days
safety painted grill on intake side meets osha standards

Motor features:
csa/csa-us approved
50/60 hz
f class insulated
follow nema standards either 48 or 56 frame
dupont nomex insulation
rotors have been balanced to reduce noise vibration and prolong life
motor enclosures have been machined to <0.5mm to reduce rotor shaft play
csa/csa-us for an ambient temperature of 40°c but will stand up to 65°c (149°f)
copper windings rated at h class
bearing specifications – 40°c to 140v c
capacitor rating 450vac, 10,000 hours for extended life
silicon steel rotors and stators

Applications:
designed for agricultural, horticultural,factories, warehouses, garages, attics and restaurants
remove and control unwanted condensation
exhaust obnoxious fumes
exhaust excessive heat
improve inside air quality

Product Description

Specification:

• Warranty: 1 year
• Overall Dimension: 13 x 18 x 18 inches
• Item Weight: 27 pounds
• Color: Silver
• Style: Traditional
• Material: Steel
• Voltage: 120 V
• Air Flow Capacity: 1400 CFM

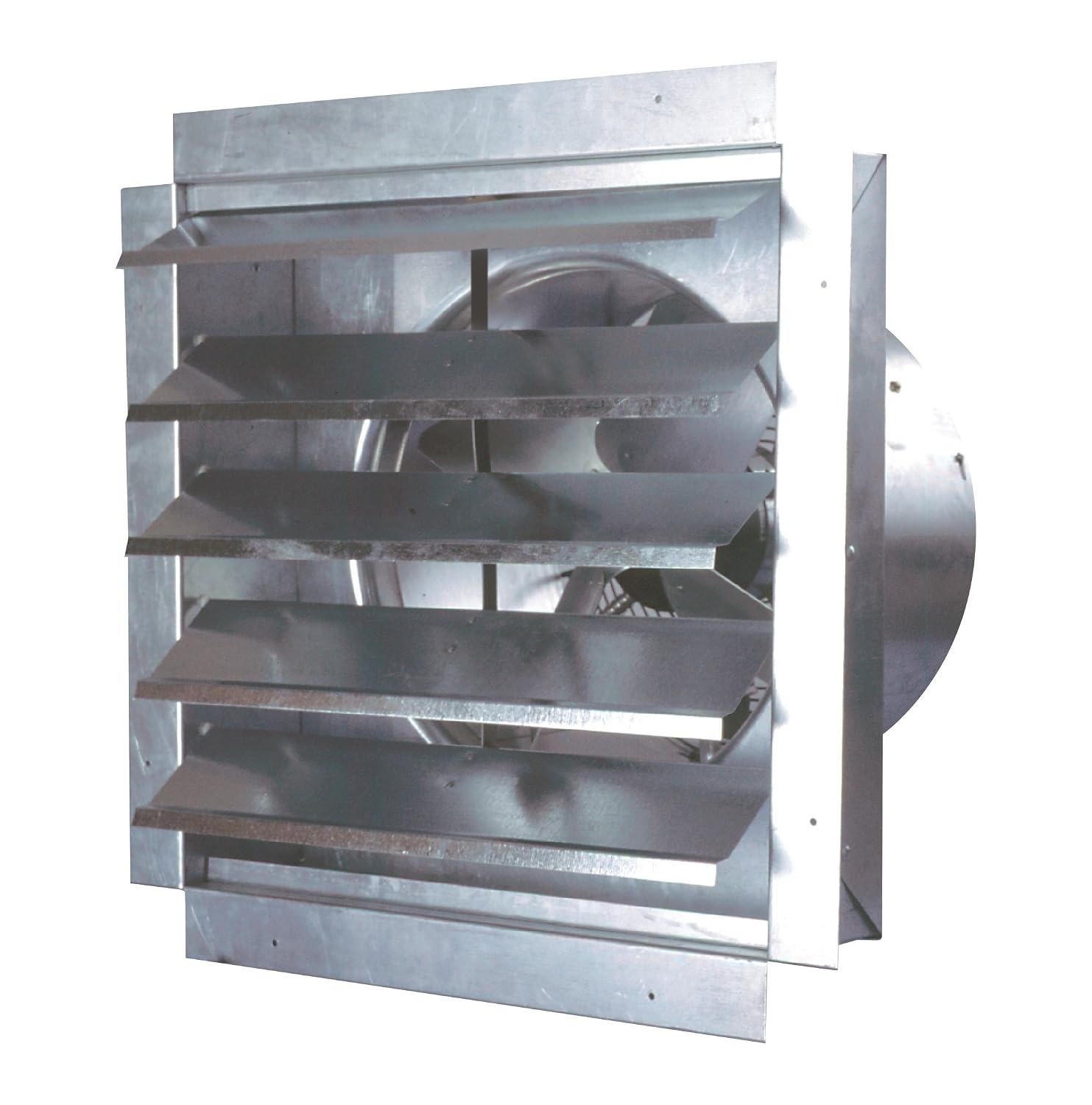

This MaxxAir 14″ Industrial Exhaust Fan is a powerful fan that can be used in garages, barns, greenhouses, and a variety of other locations. The fan is well suited to ventilate many types of substances from dust to humidity, excluding hazardous chemicals or fumes. The fan has 2 OSHA-compliant features including a safety grille and a fully enclosed, thermally protected, PSC energy efficient motor. The exterior shutters close tightly to prevent a draft when not in operation and open automatically when powered on. The housing is made of galvanized steel which prevents rust and has pre-drilled holes for easy mounting. Rolled flange edges offer handling protection during installation. The unit consists of a fan and integrated shutters. The exhaust fan is 14 inches.

From the Manufacturer

The MaxxAir 1400 CFM Heavy-duty Exhaust Fan with Shutter and PSC Energy Efficient Thermally Protected Motor and 14-Inch fan blade can be used for a variety of uses. It can be used in barns, greenhouses and other commercial applications. It helps remove unwanted odors, contaminants, excess moisture or heat. The shutter opens and closes automatically. Ventamatic has provided the ventilation industry with an air of excellence for over 60 years. The factory is 100% powered by wind generated power, 95% of all waste products are recycled and the packaging is recycled cardboard.

Product Description

Remove air wherever needed with Broan compact ventilation fans. Metal grille kit S97011308 (available separately).

From the Manufacturer

Since 1932, Broan-NuTone LLC has led the industry with forward-thinking residential ventilation products, unsurpassed built-in convenience products and superior customer service. While global expertise plays a critical role in Broan-NuTone’s ability to being able to meet and exceed the needs and desires of homeowners and designers alike, Broan-NuTone is very proud of the fact that over 80 percent of their products sold in the United States are designed, engineered and manufactured in the United States with U.S. and imported parts. Manufacturing operations in the United States are located in Hartford, Wisconsin and Cleburne, Texas, with customer and technical services located in Hartford and in Cincinnati, Ohio. Broan-NuTone is committed to developing revolutionary products that improve the indoor environment as well as implementing procedures to preserve the outdoor environment. Broan is the industry leader of range hoods, ventilation fans, heater/fan/light combination units, Indoor Air Quality (IAQ) Fresh Air Systems, built-in heaters, whole-house fans, solar powered attic ventilators and trash compactors. NuTone holds major market positions in door chimes, central vacuum systems, stereo intercom systems, home theater speakers, medicine cabinets, ironing centers, ceiling fans and ventilation fans. BEST range hoods are the “Ultimate in Kitchen Ventilation” featuring state-of-the-art performance and Italian design.

PRODUCT FEATURES
– Totally assembled
– No electrician required when plugged into an approved electrical outlet
– Safety powder-coated guard on intake side meets OSHA standards
– 3 wing aluminum balanced blade
– 2 year warranty on Motor and 1 year limited warranty on all other parts
– Motor seal, switch and wiring connections have moisture resistant rubber gasket

MOTOR FEATURES
– Motor is CSA/CSA-US approved
– Direct Drive
– 50/60 hz
– HP: 1/10
– SPD:3
– RPM (H/M/L): 1650/1565/1454
– Voltage: 115
– Rotors have been balanced to reduce noise vibration and prolong life
– Motor enclosures have been machined to <0.5mm to="" reduce="" rotor="" shaft="" play="">
– Copper winding
– Bearing specifications -40˚C to 140˚C
– Capacitor rating 450vac, 10,000 hours for extended life
– Silicon steel rotors and stators

Picking the correct fan
Choosing the correct fan depends on the volume of the area as well as the air exchange rate. To pick the correct fan, insert the values into the following equation to find the CFM. Then, review the chart in the listing’s images to find which fan is closest and/or contains the CFM.
Equation: (Volume x air exchange rate) / 60 = CFM.

For example: I am using my garage for repairs and need to select a ventilation fan to expel fumes. The volume of the garage is 3,150 cubic feet (15′ x 15′ x 14′). I want an air exchange rate of 25 (the air inside the garage is completely changed 25 times in an hour, which is about every 2.5 minutes). 3,150 x 25 = 78,750. 78,750 / 60 = 1,313 CFM. Reviewing the chart in the images, 1,313 fits in the 0.1 SP (static pressure) column for the 16″ shutter fan. This means I need a 16″ shutter fan to ventilate my garage.

The Garage Vent from Tru North Vent Company is the ultimate garage ventilation solution, designed to improve air quality and rid your garage of unwanted humidity, moisture, mold, mildew, odor, and contaminants. With a simple DIY installation process and a turn of the dial, you can maintain your desired climate and feel confident in storing your valuable tools, sporting goods, vehicles, and equipment in a climate controlled space free of harmful humidity. The Garage Vent comes in 3 sizes to fit your square footage needs. GVHC125 CFM: Garage Stalls = 1. Estimated Air Volume = 1,600 cubic feet. 4 cycles of air per hour. Amps = .15. dB = 45. GVHC225 CFM: Garage Stalls = 2. Estimated Air Volume = 3,200 cubic feet. 4 cycles of air per hour. Amps = .30. dB = 61. GVHC300 CFM: Garage Stalls = 3. Estimated Air Volume = 4,800 cubic feet. 4 cycles of air per hour. Amps = .50. dB = 68. How it works: As the humidity in the garage rises the vent turns on automatically. The Garage Vent pulls outside air in through overhead door gaps and then pushes the mixed air out. Once the humidity set point is reached, the vent turns off automatically. The Garage Vent comes with exterior louver, UL flex duct, and all mounting hardware. The vent is 11.25″ x 9″ x 3.5″. Cord length is 15 feet. We highly recommend the Pro-Kit, which is our pre-assembled, professional installation toolkit that has everything you need to make installation quick and easy. The Pro-Kit can be purchased for an additional cost and includes the following: Zircon StudSensor Pro SL-AC 3 in 1 (9V battery not included) 10” Pilot Bit 6 1/2″ Hole Saw Hole Saw Arbor, Pilot Bit & Spring Extra Pilot Bit (just in case) 1/4” Magnetic Drive #2 Philips 4” Magnetic Drive 3 oz. 100% Silicone Safety Glasses Check out our website for more info and installation instructions.

Product Description

High-impact, galvanized steel frame, felt-padded 0.020 gauge aluminum louvers for ultra-quiet operation. Louvers open automatically when ventilator is operating. When ventilator turns off, louvers close to keep out insects, rain, and dust. Pre-assembled for easy installation.

From the Manufacturer

This Cool Attic Automatic Gable Vent Shutter has a high Impact one-piece ABS Cycolac frame. It is used with the CX1500 or CX1600 gable vents. It is not made for the VX2515Solargabl solar gable fan. The louvers will open automatically when the ventilator is operating. When the ventilator is off, the louvers close to keep out insects, rain and dust. Ventamatic has provided the ventilation industry with an air of excellence for over 60 years. The factory is 100% powered by wind generated power, 95% of all waste products are recycled and the packaging is recycled cardboard.
